Sandvik Coromant

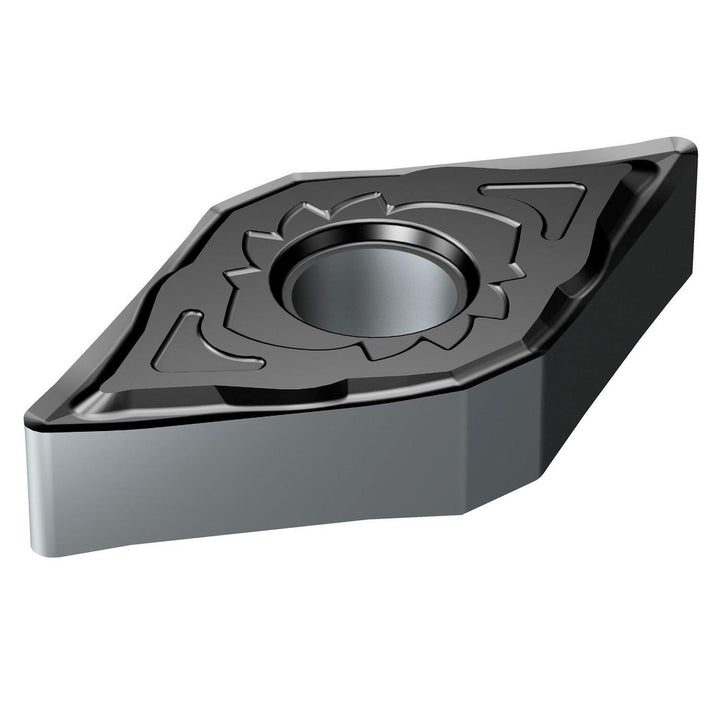

DNGG150404-SGF 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5908995
MFR# 5908995ISO/ANSI# DNGG150404-SGF 1105Series T-Max P
$28.31List $36.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5908995 is a DNGG150404-SGF 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2520
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150404-SGF 1105
Length range0.0000 - 0.3000
Manufacturer grade1105
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
