Sandvik Coromant

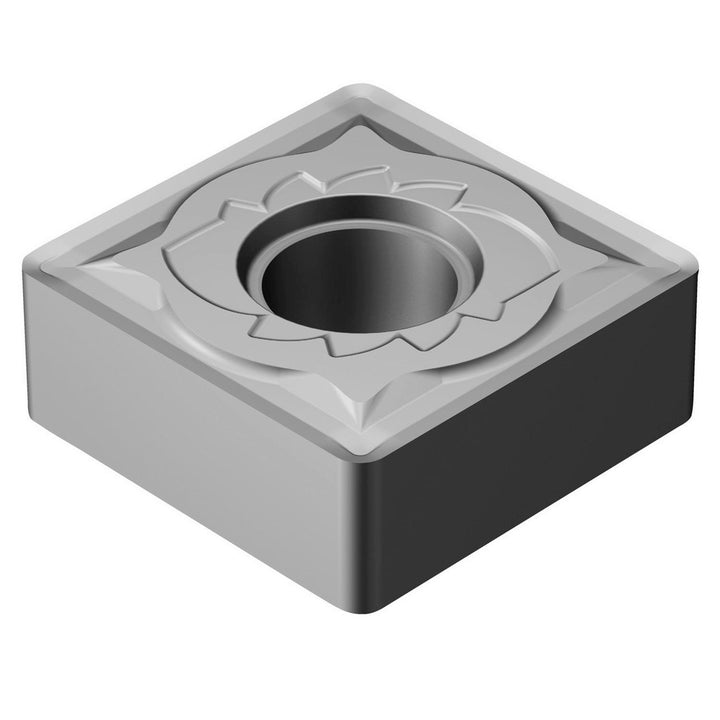

SNMG190616-SMR H13A Carbide Insert, Grade H13A - Sandvik Coromant 5909076
MFR# 5909076ISO/ANSI# SNMG190616-SMR H13ASeries T-Max P
$31.24List $40.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5909076 is a SNMG190616-SMR H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSMR
Clearance codeN
Corner radius in1/16
Hole diameter0.3120
Included angle55
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleDNMG
Insert thickness in1/4
Iso codeSNMG190616-SMR H13A
Length range0.5000 - 0.6000
Manufacturer gradeH13A
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
