Sandvik Coromant

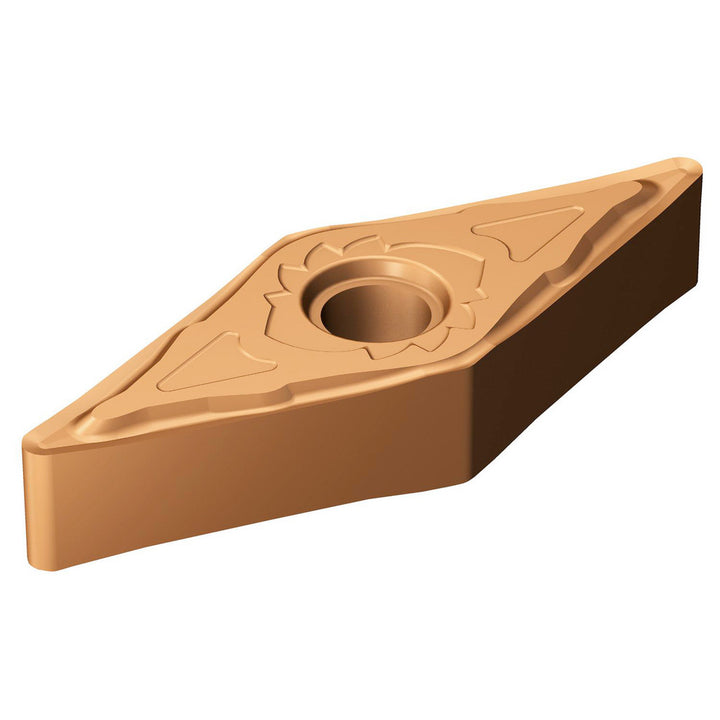

VNGG160408SGF1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5909085
MFR# 5909085ISO/ANSI# VNGG160408SGF1115Series T-Max P
$40.15List $51.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5909085 is a VNGG160408SGF1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160408SGF1115
Length range0.6500 - 0.7000
Manufacturers catalog number5909085
Manufacturer grade1115
Maximum depth of cut0.0945
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
