Sandvik Coromant

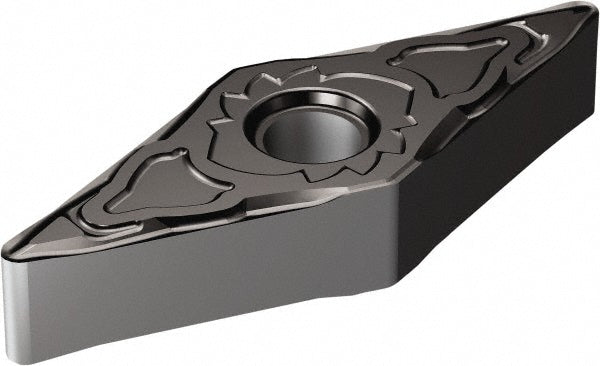

VNMG 16 04 04-SF 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5909093
MFR# 5909093ISO/ANSI# VNMG 16 04 04-SF 1105Series T-Max P
$35.40List $45.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5909093 is a VNMG 16 04 04-SF 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.0945
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 04-SF 1105
Length range0.0000 - 0.3000
Manufacturer grade1105
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
