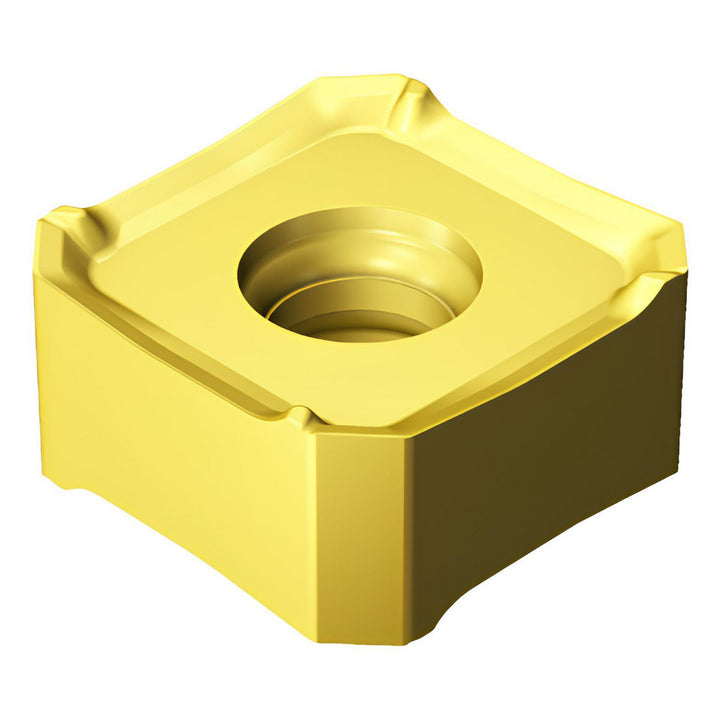

345R-13T5E-ML 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5910468

Sandvik Coromant

345R-13T5E-ML 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5910468

MFR# 5910468ISO/ANSI# 345R-13T5E-ML 2040Cat# 345R-13T5E-ML 2040Series 345

$41.76List $53.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade2040
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5910468 is a 345R-13T5E-ML 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi code345R-13T5E-ML 2040
Chip breakerML
Coating finishTiCrN
Coating processCVD
Corner radius in1/32
Cutter series compatibility345
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code13T5
Insert style345
Iso code345R-13T5E-ML 2040
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number345R-13T5E-ML 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle30
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2146
Thickness range0.2000 to 0.2200
Width0.5118
