Sandvik Coromant
CNMG120412-SM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5915052
MFR# 5915052ISO/ANSI# CNMG120412-SM 1115
$19.54List $25.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description

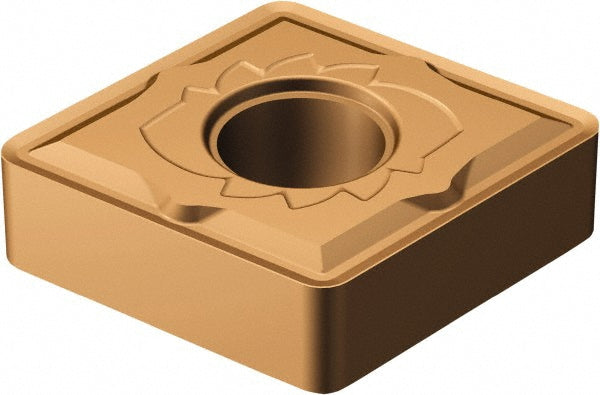

The Sandvik Coromant 5915052 is a CNMG120412-SM 1115 carbide indexable insert, grade 1115, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3346
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-SM 1115
Length range0.3000 - 0.4000
Manufacturer grade1115
Relief angle0
Tolerance codeM
