Sandvik Coromant

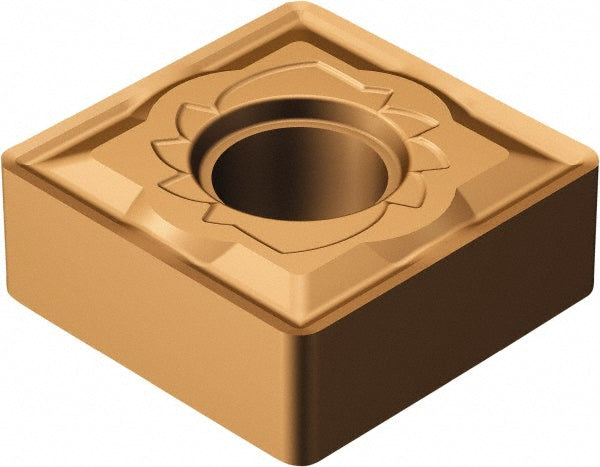

SNMG 12 04 08-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5915088
MFR# 5915088ISO/ANSI# SNMG 12 04 08-SM 1125Series T-Max P
$18.09List $23.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5915088 is a SNMG 12 04 08-SM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-SM 1125
Length range0.3000 - 0.4000
Manufacturer grade1125
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
