Sandvik Coromant
WNMG 08 04 12-SM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5915132
MFR# 5915132ISO/ANSI# WNMG 08 04 12-SM 1115Series T-Max P
$21.35List $27.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1115
MaterialCarbide
CoatingTiAlN
Description

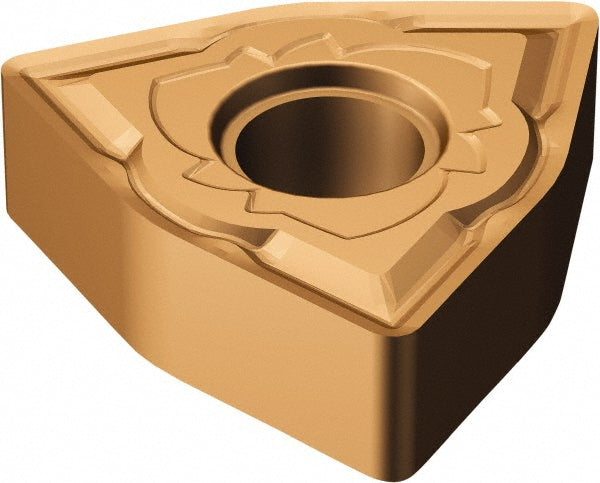

The Sandvik Coromant 5915132 is a WNMG 08 04 12-SM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-SM 1115
Length range0.3000 - 0.4000
Manufacturers catalog number5915132
Manufacturer grade1115
Maximum depth of cut0.1260
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
