Sandvik Coromant

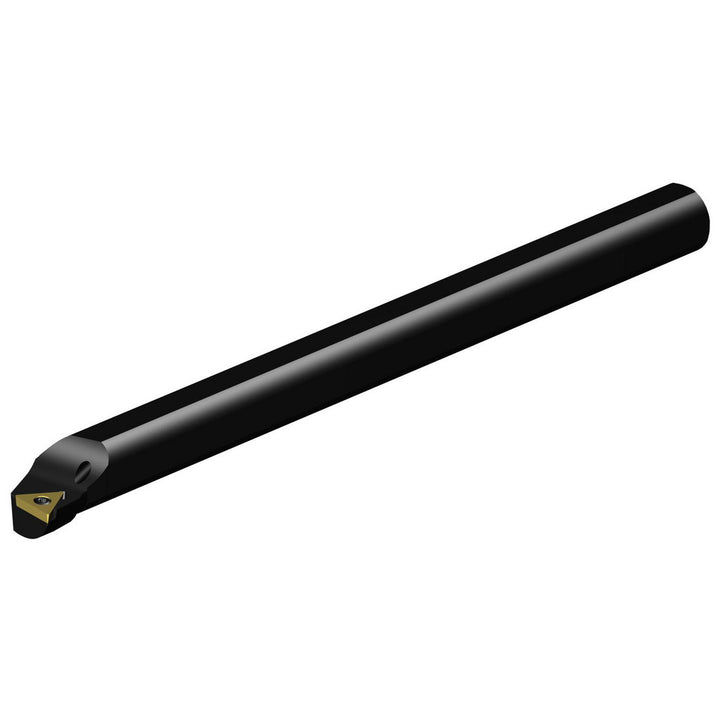

Indexable Boring - Sandvik Coromant 5937346
MFR# 5937346Cat# A10R-STFCR 2Series CoroTurn 107
$206.37List $219.24
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5937346 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge8.0000
Center to cutting edge0.4060
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle0.2250
Insert thickness in3/32
Lead angle0.00
Manufacturers catalog numberA10R-STFCR 2
Minimum bore diameter0.7717
Minimum bore diameter using diamond insert cartridge0.7717
Minimum bore diameter using triangle insert cartridge0.7717
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in5/8
Number of inserts used on toolholder1
Overall length in8
RakeNeutral
Rake angle0.00
Shank diameter in5/8
Toolholder styleA-STFC
Tool materialSteel
