Sandvik Coromant

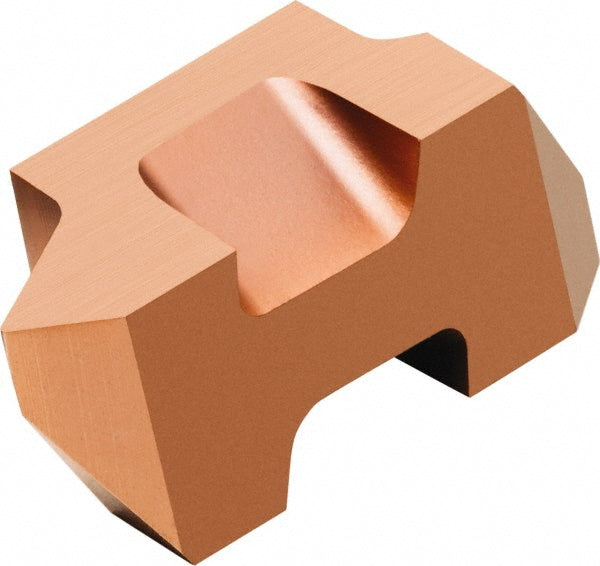

TLTF-3L 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5954570
MFR# 5954570ISO/ANSI# TLTF-3L 1125Series Top Lok
$42.80List $54.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5954570 is a TLTF-3L 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0030
External pitch0.60-2.50 mm; 9-44 TPI
Finish coatingTiAlN
Included angle60degree
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleTLTF
Internal pitch0.60 to 2.50 mm; 9 to 44 TPI
Iso codeTLTF-3L 1125
Manufacturer grade1125
Thickness0.3440in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.3440
Width of cutting tip0.1950
