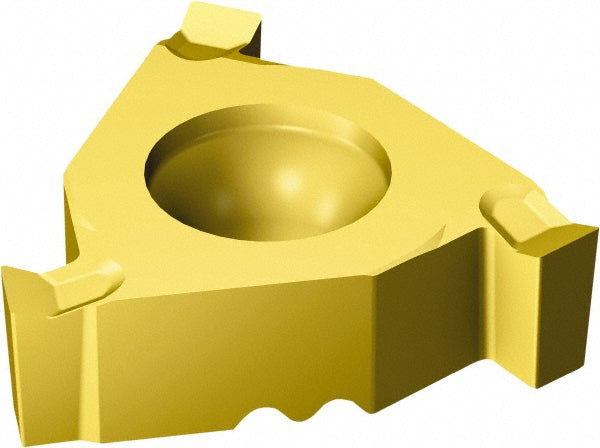

254RG-16CC01-130 1135 Solid Carbide Insert, Grade 1135, TiCrAlN/TiN - Sandvik Coromant 5961303
MFR# 5961303ISO/ANSI# 254RG-16CC01-130 1135Cat# 254RG-16CC01-130 1135Series CoroThread 266
$34.23List $43.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1135
MaterialSolid Carbide
CoatingTiCrAlN/TiN
Description
The Sandvik Coromant 5961303 is a 254RG-16CC01-130 1135 solid carbide indexable insert, grade 1135, TiCrAlN/TiN coated.
Specifications
Chip breakerC
Coating finishTiCrAlN/TiN
Coating processPVD
Corner radius0.0032
Cutting height0.1570
Cutting width0.0512
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size0.375
Insert size0.375
Insert style254
Insert thickness0.1563
Iso code254RG-16CC01-130 1135
Manufacturers catalog number254RG-16CC01-130 1135
Manufacturer grade1135
Maximum corner radius0.0039
Maximum depth of cut in1/16
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.2717
Overall width0.0512
RakeNeutral
Rake angle0.00
