Sandvik Coromant

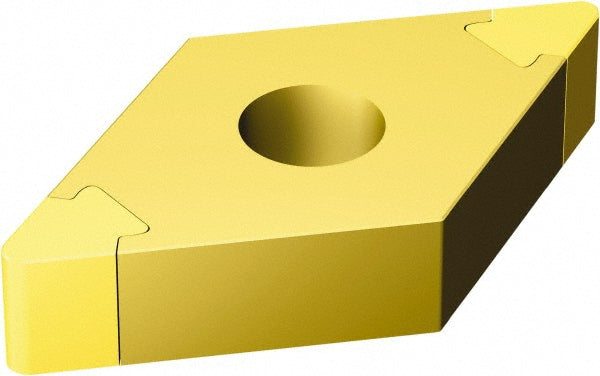

DNGA150408S01530B 7525 Carbide Insert, Grade 7525, TiN - Sandvik Coromant 5965429
MFR# 5965429ISO/ANSI# DNGA150408S01530B 7525
$175.15List $224.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade7525
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5965429 is a DNGA150408S01530B 7525 carbide indexable insert, grade 7525, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0866
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408S01530B 7525
Length range0.0000 - 0.3000
Manufacturer grade7525
Relief angle0
Tolerance codeG
