Sandvik Coromant

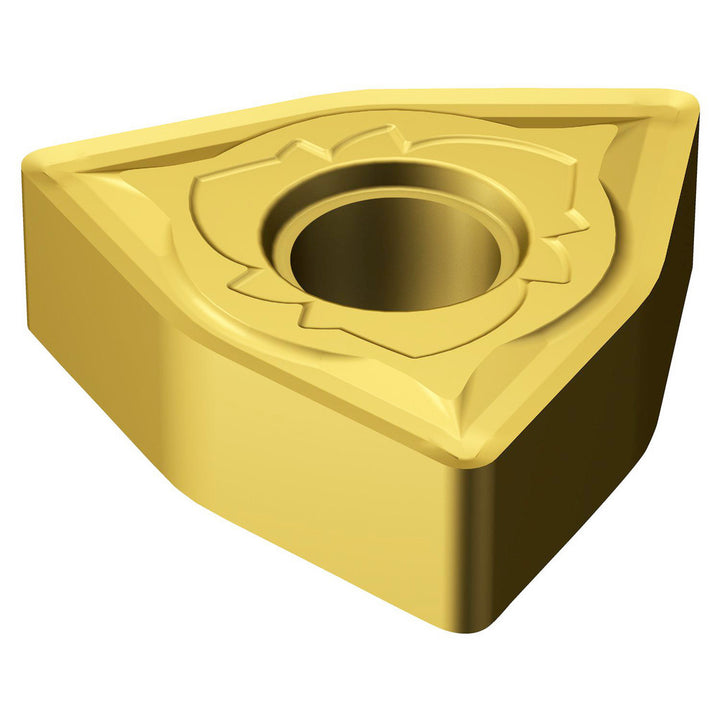

WNMG080408SMR2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5966261
MFR# 5966261ISO/ANSI# WNMG080408SMR2025Series T-Max P
$20.54List $26.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5966261 is a WNMG080408SMR2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerSMR
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408SMR2025
Length range0.3000 - 0.4000
Manufacturers catalog number5966261
Manufacturer grade2025
Maximum depth of cut0.1260
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
