Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 6010095

Sandvik Coromant

Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 6010095

MFR# 6010095Series 327

$128.84List $165.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
Grade1025
CoatingTiAlN

Description

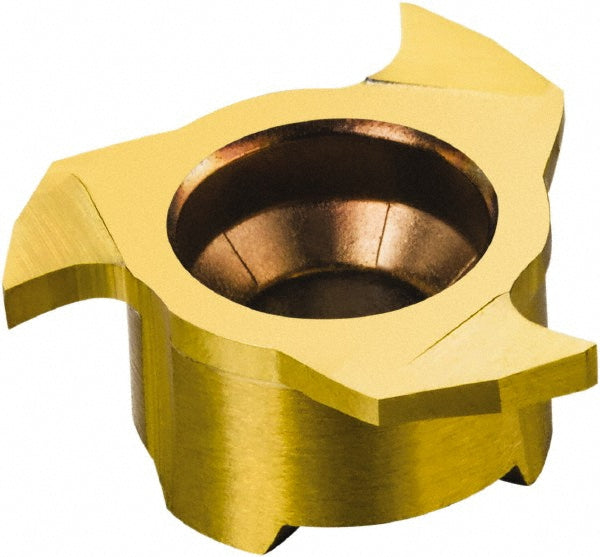

The Sandvik Coromant 6010095 is a carbide indexable insert, grade 1025, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Chamfer angle0.000
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0039
Cutting diameter0.6968
Cutting width0.6968
Functional length0.2264
Included angle degree90
Insert handRight Hand
Insert sizeR09-18 15001
Lead angle90
Length of cut0.1378
Manufacturers catalog number6010095
Manufacturer grade1025
Material gradeP10; P20; P30; M10; M20; S10; S20; N10; N20
Maximum depth of cut0.1378
Milling tip full description327R09-18 15001-GMM 1025
Milling tip style327
Milling tip typeGroove
Number of flutes6
Overall length0.2264
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
StandardsANSI
Tool materialCarbide
