Sandvik Coromant

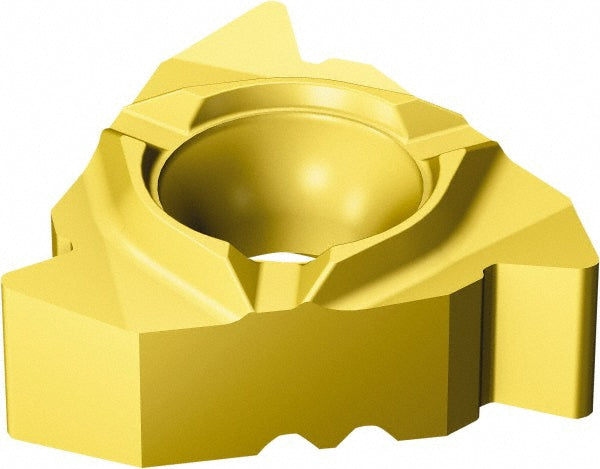

3/8" IC Solid Carbide Insert, Grade 7015, TiN - Sandvik Coromant 6012451
MFR# 6012451Cat# 266RG-16VM01A002EE 7015Series CoroThread 266
$162.52List $208.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade7015
MaterialSolid Carbide
CoatingTiN
Description
The Sandvik Coromant 6012451 is a solid carbide indexable insert, grade 7015, TiN coated.
Specifications
ChipbreakerA
Coating finishTiN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style266
Manufacturers catalog number266RG-16VM01A002EE 7015
Manufacturer grade7015
Number of teeth per side1
Pitch (mm)1.50-3.00
Thickness in5/32
Threads per inch8-16
Thread standard60 Deg V
Thread typeExternal
