Sandvik Coromant

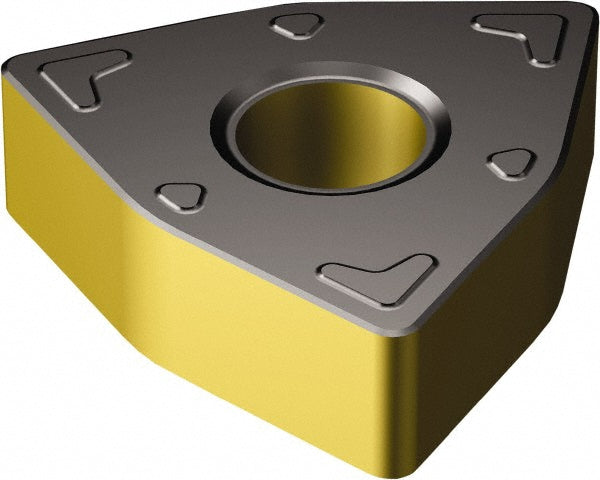

WNMG 08 04 12-KRR 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 6042798
MFR# 6042798ISO/ANSI# WNMG 08 04 12-KRR 3210Series T-Max P
$21.18List $27.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6042798 is a WNMG 08 04 12-KRR 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKRR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2948
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-KRR 3210
Length range0.0000 - 0.3000
Manufacturer grade3210
Number of cutting edges6
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
