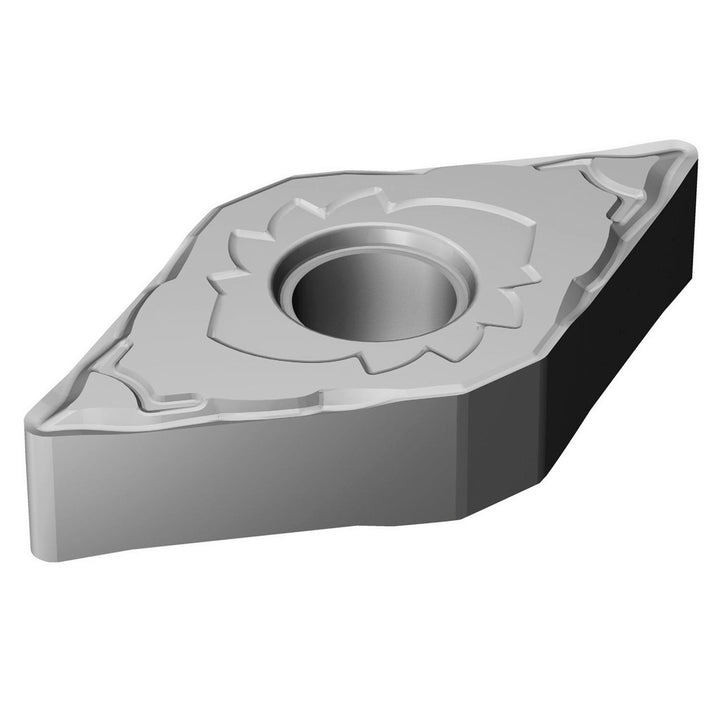

DNMG110408SFH13A Carbide Insert, Grade H13A - Sandvik Coromant 6066623
MFR# 6066623ISO/ANSI# DNMG110408SFH13ASeries T-Max P
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 6066623 is a DNMG110408SFH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSF
Clearance codeN
Corner radius in1/32
Hole diameter0.1500
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4579
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110408SFH13A
Length range0.4000 - 0.5000
Manufacturers catalog number6066623
Manufacturer gradeH13A
Maximum depth of cut0.4264
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
