Sandvik Coromant
MATR 3 60-A 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 6071746
MFR# 6071746ISO/ANSI# MATR 3 60-A 1105Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialCarbide
CoatingTiAlN
Description

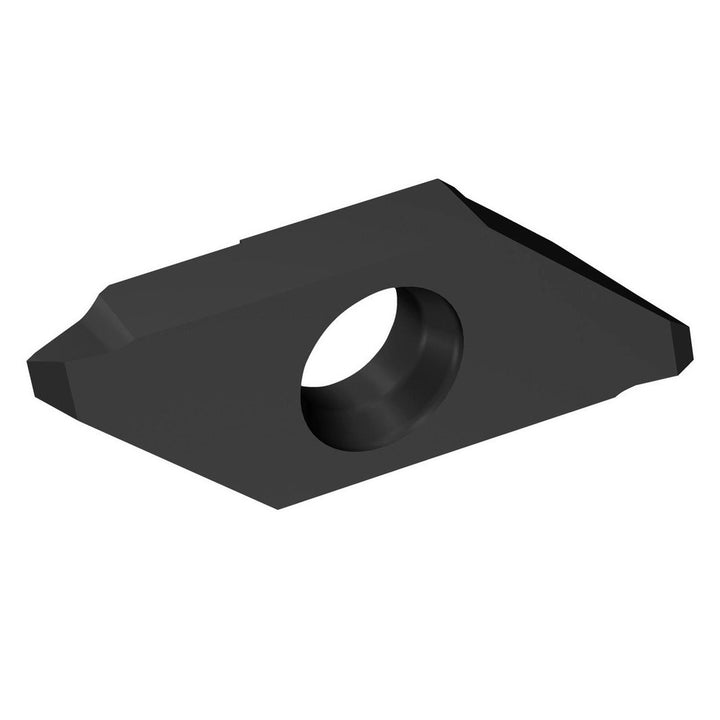

The Sandvik Coromant 6071746 is a MATR 3 60-A 1105 carbide indexable insert, grade 1105, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
External pitch0.35-1.00 mm; 24-72 TPI
Finish coatingTiAlN
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleMATR-A
Iso codeMATR 3 60-A 1105
Manufacturer grade1105
Thickness in1/8in
Thread standard60 Deg V
Thread typeExternal
Tip to top of insert0.1250
