Sandvik Coromant
Solid Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 6075352
MFR# 6075352Series CoroCut 1-2
$42.44List $54.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN
Description

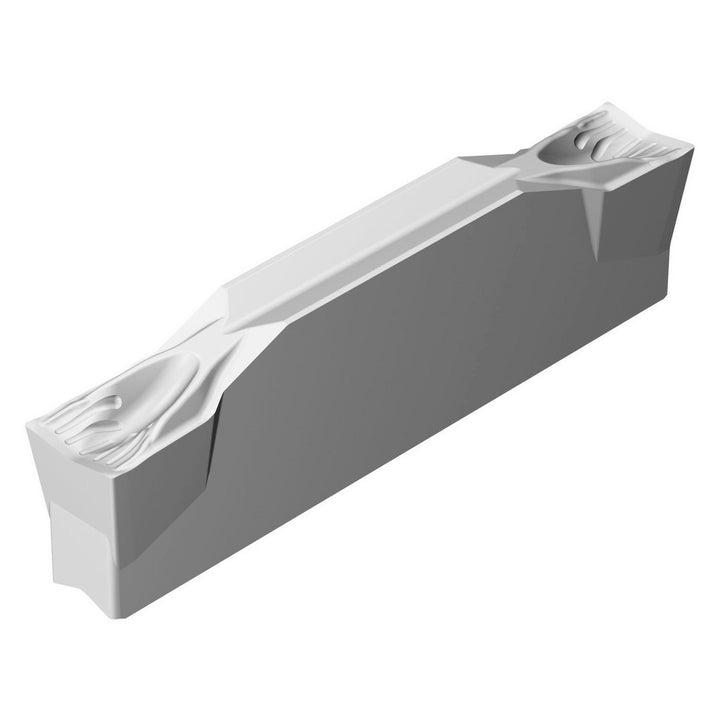

The Sandvik Coromant 6075352 is a solid carbide indexable insert, grade 1105, TiAlN coated.
Specifications
ChipbreakerCF
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting tool applicationGrooving; Parting; Profiling
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleN123G2-...
Lead angle0
Lead angle directionNeutral
Manufacturers catalog number6075352
Manufacturer grade1105
Maximum depth of cut0.7244
Relief angle7.00
Width tolerance+0.004/-0 (Inch)
