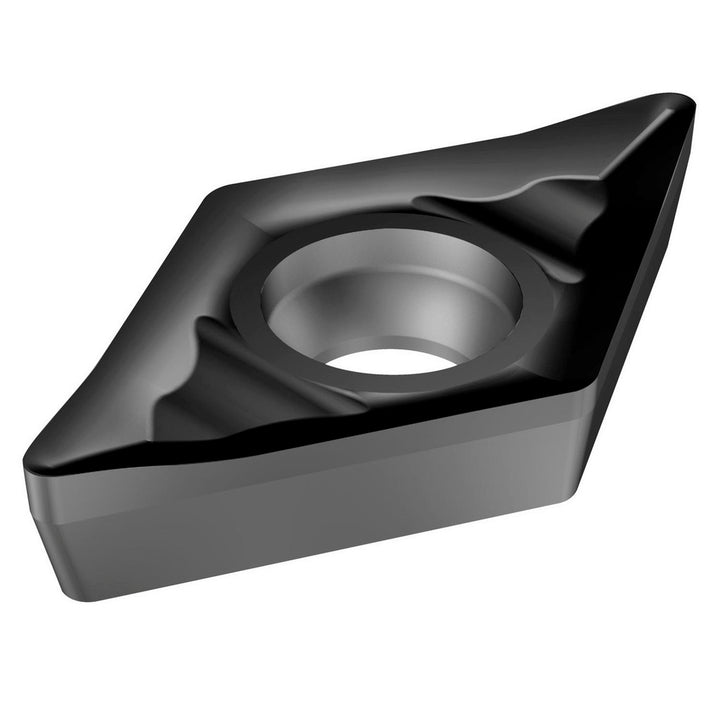

DCGX 11 T3 08-AL 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 6075404
MFR# 6075404ISO/ANSI# DCGX 11 T3 08-AL 1105Series CoroTurn 107
$29.59List $37.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6075404 is a DCGX 11 T3 08-AL 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerAL
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCGX
Insert thickness in5/32
Iso codeDCGX 11 T3 08-AL 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
