Sandvik Coromant

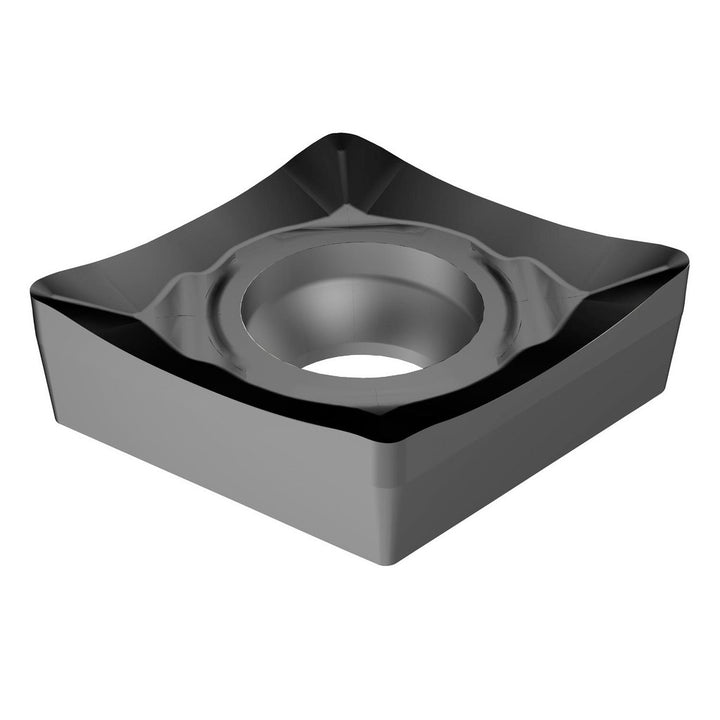

CCGX09T308AL1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6075415
MFR# 6075415ISO/ANSI# CCGX09T308AL1105Series CoroTurn 107
$28.17List $36.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 6075415 is a CCGX09T308AL1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for stainless steel.
Specifications
Chip breakerAL
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCGX
Insert thickness in5/32
Iso codeCCGX09T308AL1105
Length range0.3000 - 0.4000
Manufacturers catalog number6075415
Manufacturer grade1105
Maximum depth of cut0.3492
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
