Sandvik Coromant

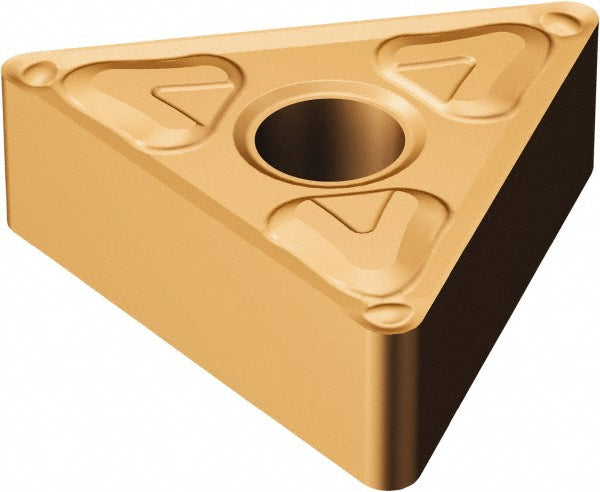

TNMG160404XFGC15 Carbide Insert, Grade GC15, TiAlN - Sandvik Coromant 6107679
MFR# 6107679ISO/ANSI# TNMG160404XFGC15Series T-Max P
$17.09List $21.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeGC15
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6107679 is a TNMG160404XFGC15 carbide indexable insert, grade GC15, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404XFGC15
Length range0.6000 - 0.6500
Manufacturers catalog number6107679
Manufacturer gradeGC15
Maximum depth of cut0.6339
Relief angle0
Tolerance codeM
