Sandvik Coromant

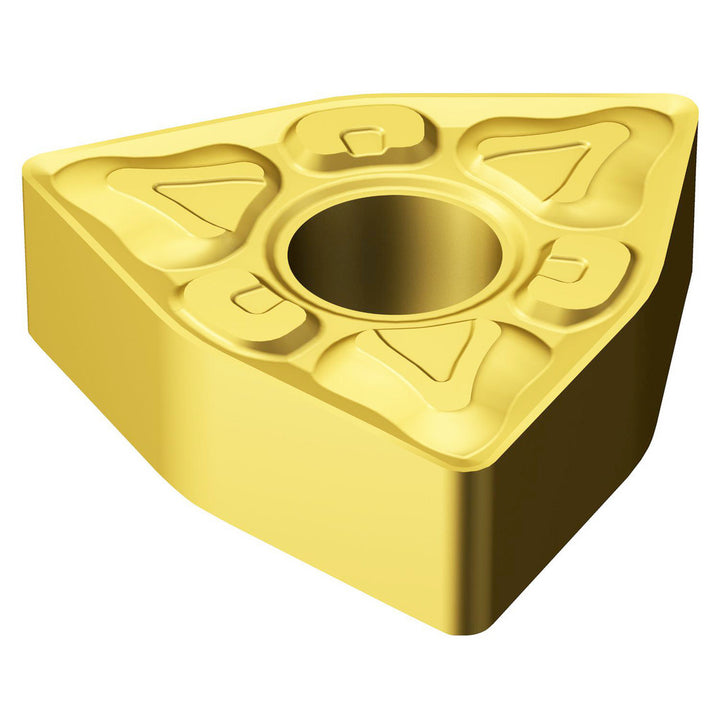

WNMG 08 04 08-XM GC30 Carbide Insert, Grade GC30, TiCN - Sandvik Coromant 6107710
MFR# 6107710ISO/ANSI# WNMG 08 04 08-XM GC30Series T-Max P
$21.35List $27.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeGC30
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6107710 is a WNMG 08 04 08-XM GC30 carbide indexable insert, grade GC30, TiCN coated. Suited for steel.
Specifications
Chip breakerXM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3105
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-XM GC30
Length range0.3000 - 0.4000
Manufacturer gradeGC30
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
