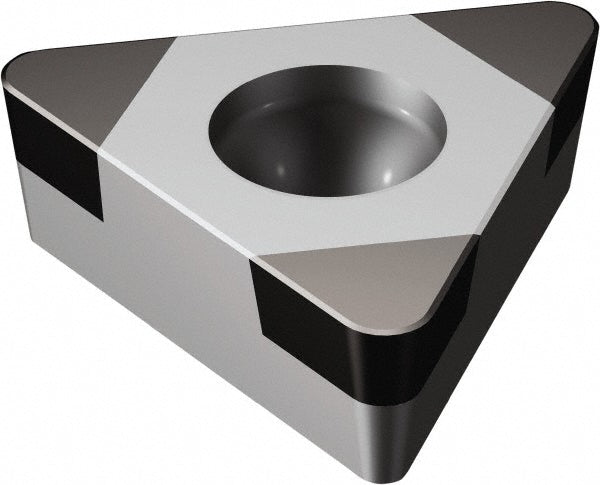

TCGW110308S01530F7025 Cubic Boron Nitride (CBN) Insert, Grade 7025 - Sandvik Coromant 6155468
MFR# 6155468ISO/ANSI# TCGW110308S01530F7025Series CoroTurn 107
$103.58List $132.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade7025
MaterialCubic Boron Nitride (CBN)
Description
The Sandvik Coromant 6155468 is a TCGW110308S01530F7025 cubic boron nitride (cbn) indexable insert, grade 7025.
Specifications
Chip breakerW
Clearance codeC
Corner radius in1/32
Cutting edge styleER Treated; Negative Land
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4228
Insert materialCubic Boron Nitride (CBN)
Insert shapeTriangle
Insert size code222
Insert styleTCGW
Insert thickness in1/8
Iso codeTCGW110308S01530F7025
Length range0.4000 - 0.5000
Manufacturers catalog number6155468
Manufacturer grade7025
Maximum depth of cut0.1142
Relief angle7
Tolerance codeG
