Sandvik Coromant

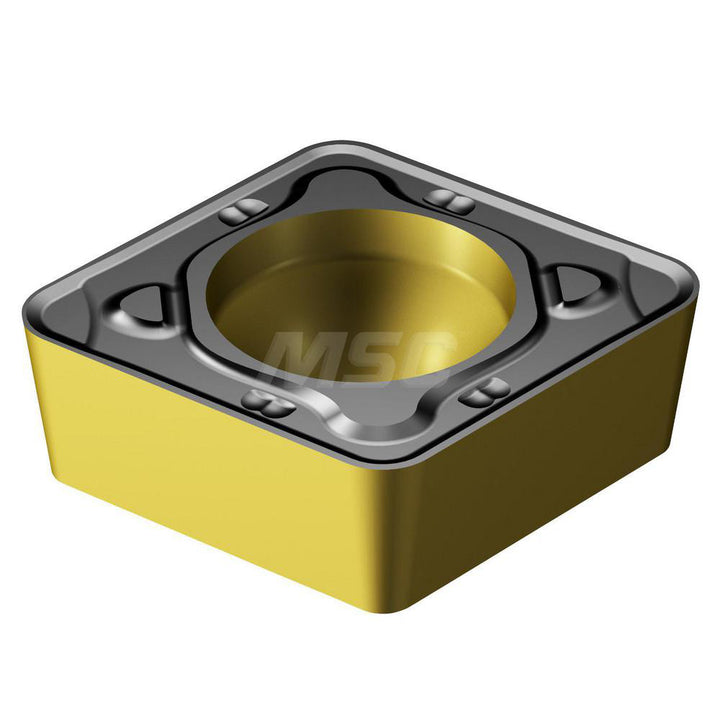

CCMT09T308KR3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 6162298
MFR# 6162298ISO/ANSI# CCMT09T308KR3210Series CoroTurn 107
$15.40List $19.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6162298 is a CCMT09T308KR3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308KR3210
Length range0.3000 - 0.4000
Manufacturers catalog number6162298
Manufacturer grade3210
Maximum depth of cut0.3492
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
