Sandvik Coromant

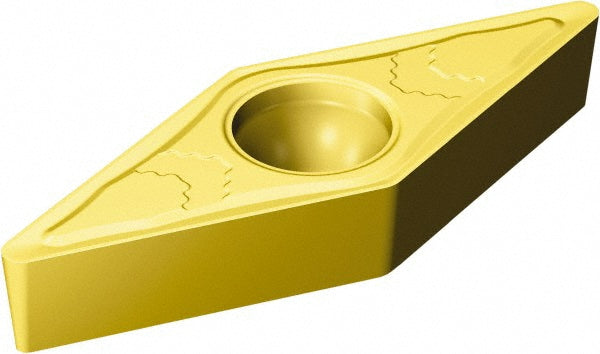

VBMT160408MMC2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 6198170
MFR# 6198170ISO/ANSI# VBMT160408MMC2025Series CoroTurn 107
$25.89List $33.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6198170 is a VBMT160408MMC2025 carbide indexable insert, grade 2025, TiCN coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408MMC2025
Length range0.6500 - 0.7000
Manufacturers catalog number6198170
Manufacturer grade2025
Maximum depth of cut0.6224
Relief angle5
Tolerance codeM
