Sandvik Coromant
N123H1-0475-RO 1105 Solid Carbide Insert, TiAlN - Sandvik Coromant 6198471
MFR# 6198471ISO/ANSI# N123H1-0475-RO 1105Cat# N123H1-0475-RO 1105Series CoroCut 1-2
$37.13List $47.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description

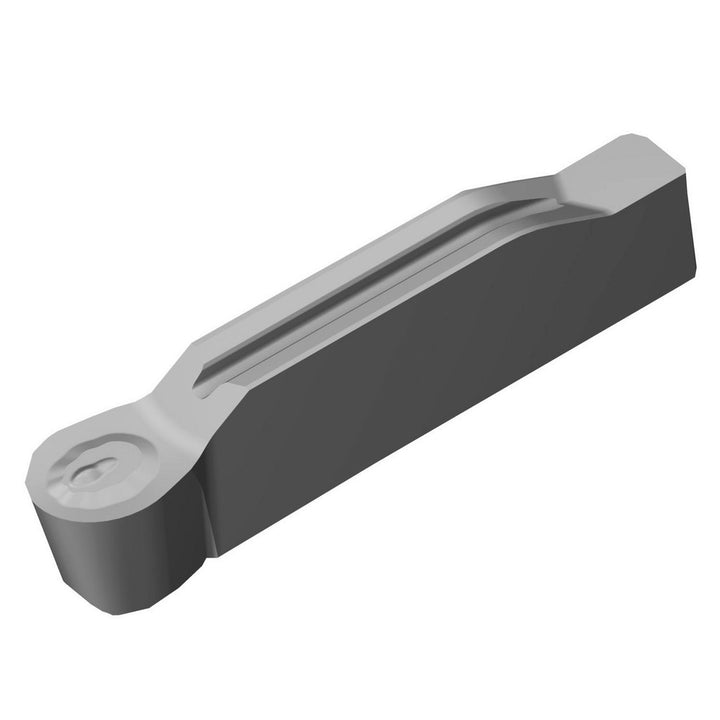

The Sandvik Coromant 6198471 is a N123H1-0475-RO 1105 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius0.0935
Cutting height0.1713
Cutting width0.1870
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH1
Insert styleN123x1
Insert thickness0.1713
Iso codeN123H1-0475-RO 1105
Manufacturers catalog numberN123H1-0475-RO 1105
Maximum depth of cut0.0866
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0935
Multi use toolYes
Overall length0.9860
Overall width0.1870
RakePositive
