Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 6199516
MFR# 6199516Series CoroCut 1-2
$39.24List $50.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

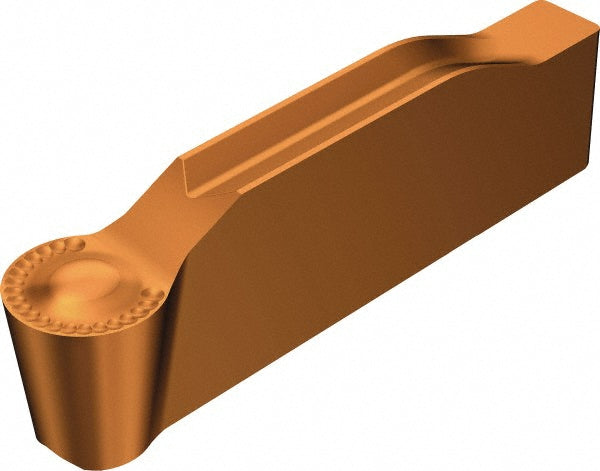

The Sandvik Coromant 6199516 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.1181
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert size0600
Insert styleN123
Manufacturers catalog number6199516
Manufacturer grade1125
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Rake angle7.00
