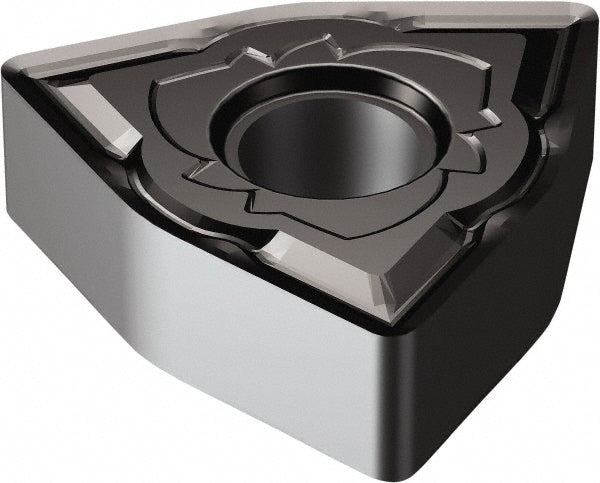

WNMG 06 04 08-SM 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6199985
MFR# 6199985ISO/ANSI# WNMG 06 04 08-SM 1105Series T-Max P
$17.09List $21.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTrigon
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 6199985 is a WNMG 06 04 08-SM 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN2
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-SM 1105
Length range0.0000 - 0.3000
Manufacturers catalog number6199985
Manufacturer grade1105
Maximum depth of cut0.2252
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
