Sandvik Coromant

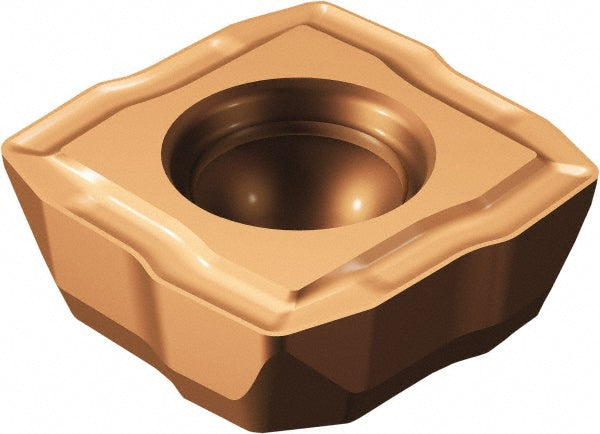

0.5846" IC Solid Carbide Insert, Grade 1144, TiAlN - Sandvik Coromant 6227413
MFR# 6227413
$31.58List $40.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1144
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 6227413 is a solid carbide indexable insert, grade 1144, TiAlN coated.
Specifications
ChipbreakerLM
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting directionRight Hand
Hole diameter0.1850
Inscribed circle0.5846
Insert materialSolid Carbide
Insert size08C
Insert style880
Length0.5846
Manufacturer grade1144
ShapeSquare
Thickness0.1772
Width0.5846
