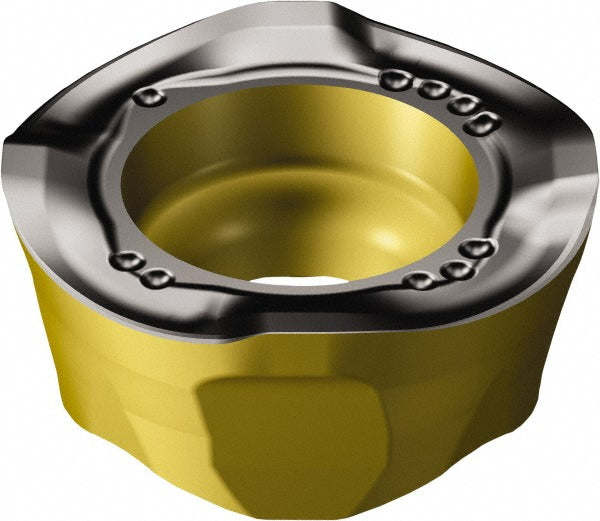

600R-1045M-MM 4240 Solid Carbide Insert, Grade 4240, TiCN - Sandvik Coromant 6252744

Sandvik Coromant

600R-1045M-MM 4240 Solid Carbide Insert, Grade 4240, TiCN - Sandvik Coromant 6252744

MFR# 6252744ISO/ANSI# 600R-1045M-MM 4240Cat# 600R-1045M-MM 4240Series 600

$15.46List $19.82 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
Grade4240
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 6252744 is a 600R-1045M-MM 4240 solid carbide indexable insert, grade 4240, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi code600R-1045M-MM 4240
Chip breakerMM
Coating finishTiCN
Coating processCVD
Convex radius0.1969
Corner radius0.1969
Cutter series compatibility600
Cutting edge styleRounded
Hole diameter0.1772
Included angle degree360
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code1045
Insert style600
Iso code600R-1045M-MM 4240
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog number600R-1045M-MM 4240
Manufacturer grade4240
Material applicationSteel; Stainless Steel
Maximum depth of cut0.1417
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3937
