Sandvik Coromant

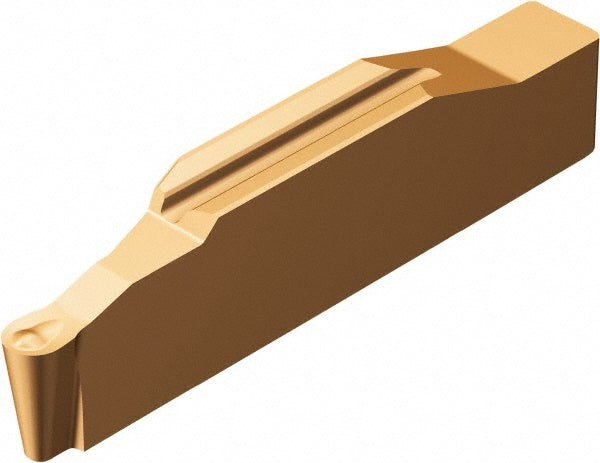

L123H1-0200-RO 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 6256907
MFR# 6256907ISO/ANSI# L123H1-0200-RO 1125Cat# L123H1-0200-RO 1125Series CoroCut 1-2
$37.18List $47.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 6256907 is a L123H1-0200-RO 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting width0.0787
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat sizeH
Insert size0.5
Insert styleL123H1-0200
Iso codeL123H1-0200-RO 1125
Manufacturers catalog numberL123H1-0200-RO 1125
Maximum depth of cut0.1970
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0394
Multi use toolYes
Overall length0.9860
Overall width0.0790
RakePositive
