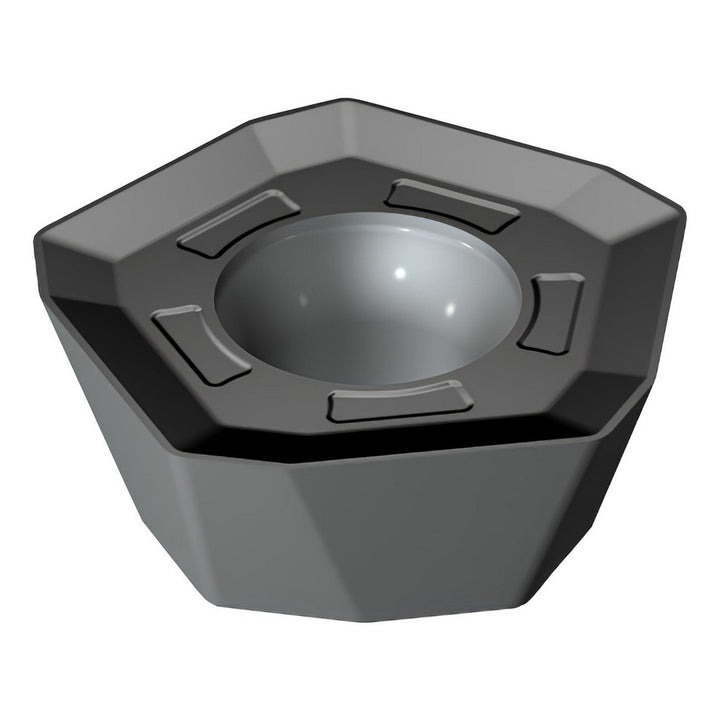

419R-1405M-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 6289945

Sandvik Coromant

419R-1405M-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 6289945

MFR# 6289945ISO/ANSI# 419R-1405M-PM S30TCat# 419R-1405M-PM S30TSeries 419

$24.76List $31.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/32
ShapePentagon
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 6289945 is a 419R-1405M-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi code419R-1405M-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility419
Cutting edge styleCorner Rounded
Hole diameter0.2165
Included angle degree108
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size14
Insert size code1405
Insert style419
Iso code419R-1405M-PM S30T
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog number419R-1405M-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges5
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2154
Thickness range0.2000 to 0.2200
Width in17/32
