Sandvik Coromant

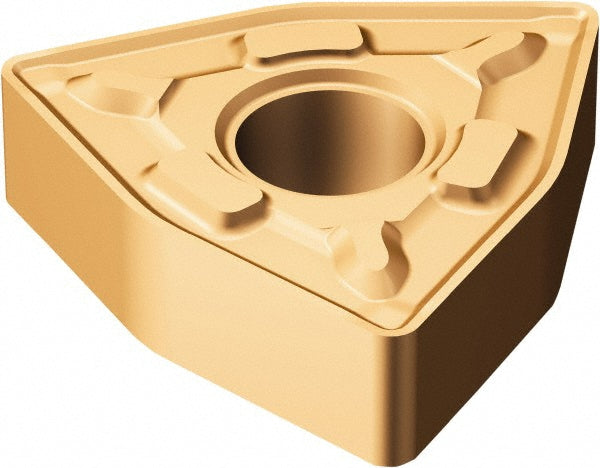

WNMG080412MRR1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 6293038
MFR# 6293038ISO/ANSI# WNMG080412MRR1115Series T-Max P
$21.35List $27.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6293038 is a WNMG080412MRR1115 carbide indexable insert, grade 1115, TiAlN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412MRR1115
Length range0.3000 - 0.4000
Manufacturers catalog number6293038
Manufacturer grade1115
Maximum depth of cut0.2949
Relief angle0
Tolerance codeM
