1/16in" 2-Flute Solid Carbide Ball End Mill, TiAlN - Sandvik Coromant 6334786

Sandvik Coromant

1/16in" 2-Flute Solid Carbide Ball End Mill, TiAlN - Sandvik Coromant 6334786

MFR# 6334786Cat# 1B2310159XA1620Series 1B231

$76.81List $98.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16in
Flutes2
MaterialSolid Carbide
CoatingTiAlN

Description

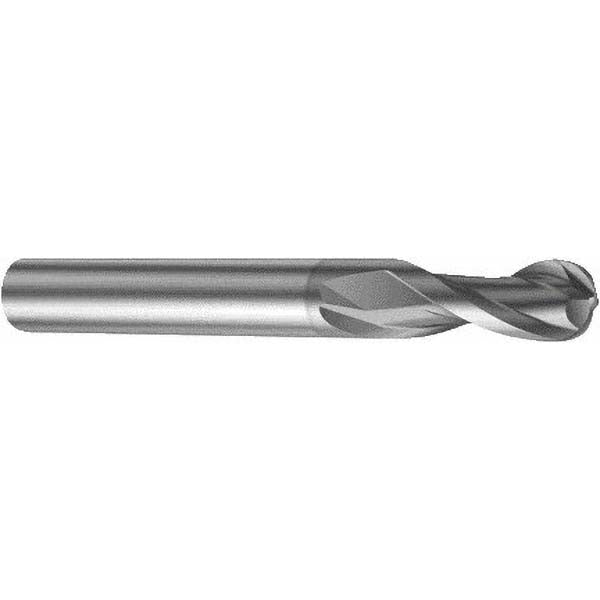

The Sandvik Coromant 6334786 is a 1/16in 2-flute Solid Carbide (1620) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1/8in length of cut, 3in overall length. Series 1B231.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1/8in
Length typeStandard
Manufacturers catalog number1B2310159XA1620
Material grade1620
Material removal typeRoughing & Finishing
Mill diameter in1/16in
Mill diameter toleranceh9
Neck length0.0000
Nose radius0.0313
Number of flutes2
Overall length in3in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in1/8
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
