Sandvik Coromant

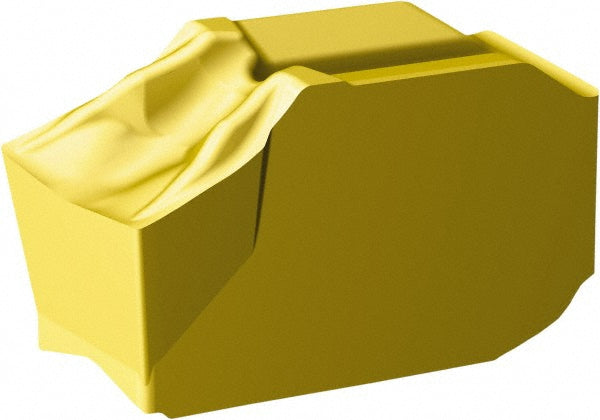

Solid Carbide Insert, Grade 1135, TiCN/Al2O3/TiN - Sandvik Coromant 6398175
MFR# 6398175Series CoroCut QD
$24.33List $31.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6398175 is a solid carbide indexable insert, grade 1135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCF
Coating finishTiCN/Al2O3/TiN
Coating processPVD
Corner radius0.0059
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleQD
Manufacturers catalog number6398175
Manufacturer grade1135
Relief angle7.00
Width tolerance0.001969 (Inch)
