Sandvik Coromant
Solid Carbide Insert, Grade 1135, TiCN/Al2O3/TiN - Sandvik Coromant 6398191
MFR# 6398191Series CoroCut QD
$32.33List $41.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

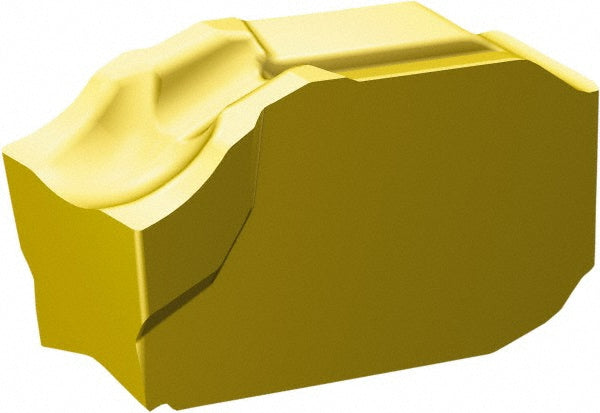

The Sandvik Coromant 6398191 is a solid carbide indexable insert, grade 1135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCO
Coating finishTiCN/Al2O3/TiN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleQD
Manufacturers catalog number6398191
Manufacturer grade1135
Relief angle7.00
Width tolerance0.000787 (Inch)
