Sandvik Coromant
QD-NG-0300-0003-TF 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 6427395
MFR# 6427395ISO/ANSI# QD-NG-0300-0003-TF 1125Cat# QD-NG-0300-0003-TF 1125Series CoroCut 1-2
$25.56List $32.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description

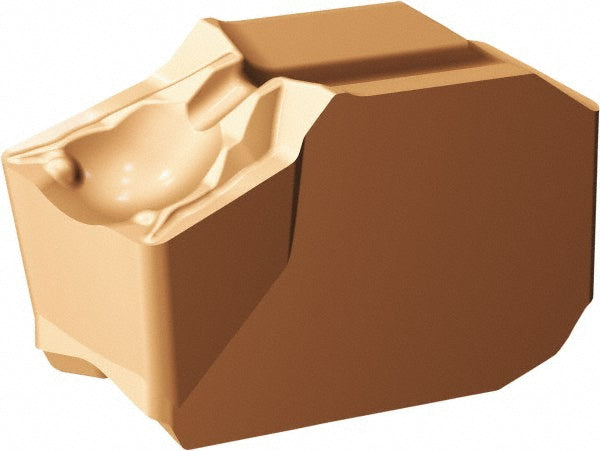

The Sandvik Coromant 6427395 is a QD-NG-0300-0003-TF 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Chip breakerTF
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0120
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG
Insert styleQD
Insert thickness0.1220
Iso codeQD-NG-0300-0003-TF 1125
Manufacturers catalog numberQD-NG-0300-0003-TF 1125
Manufacturer grade1125
Maximum depth of cut0.0827
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall width0.1220
RakePositive
