Sandvik Coromant

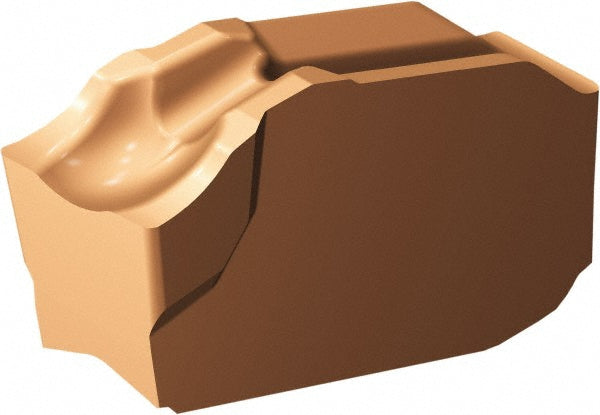

Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 6427471
MFR# 6427471Series CoroCut QD
$27.49List $35.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6427471 is a carbide indexable insert, grade 1125, TiAlN coated.
Specifications
ChipbreakerCO
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting tool applicationGrooving; Parting
Cutting width0.0787
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat sizeE
Insert size codeE
Insert styleQD
Manufacturers catalog number6427471
Manufacturer grade1125
Relief angle7.00
Width tolerance0.000787 (Inch)
