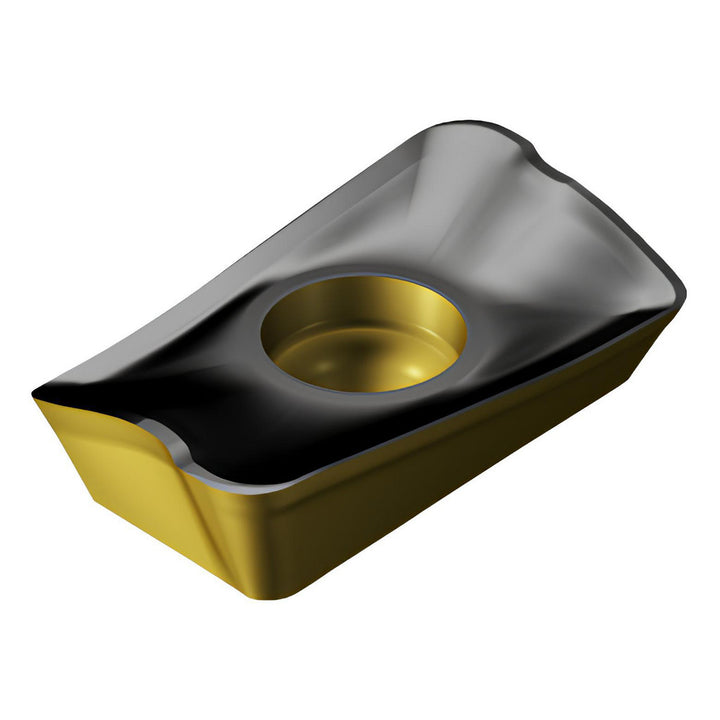

R390-11 T3 10M-KH 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428045

Sandvik Coromant

R390-11 T3 10M-KH 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428045

MFR# 6428045ISO/ANSI# R390-11 T3 10M-KH 3330Cat# R390-11 T3 10M-KH 3330Series R390

$23.12List $29.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade3330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 6428045 is a R390-11 T3 10M-KH 3330 solid carbide indexable insert, grade 3330, TiCN coated. Suited for cast iron.

Specifications

Ansi codeR390-11 T3 10M-KH 3330
Chip breakerKH
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T310
Insert styleR390
Iso codeR390-11 T3 10M-KH 3330
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 10M-KH 3330
Manufacturer grade3330
Material applicationCast Iron
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle9
Relief angle21.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
