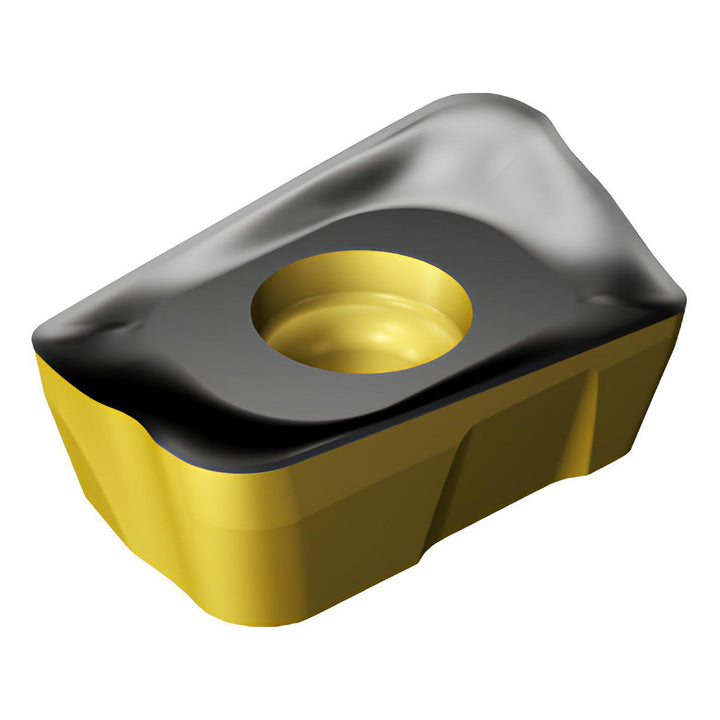

R390-18 06 20M-KM 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428072

Sandvik Coromant

R390-18 06 20M-KM 3330 Solid Carbide Insert, Grade 3330, TiCN - Sandvik Coromant 6428072

MFR# 6428072ISO/ANSI# R390-18 06 20M-KM 3330Cat# R390-18 06 20M-KM 3330Series R390

$32.45List $41.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade3330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 6428072 is a R390-18 06 20M-KM 3330 solid carbide indexable insert, grade 3330, TiCN coated. Suited for cast iron.

Specifications

Ansi codeR390-18 06 20M-KM 3330
Chip breakerKM
Coating finishTiCN
Coating processCVD
Corner radius0.0787
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180620
Insert styleR390
Iso codeR390-18 06 20M-KM 3330
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 20M-KM 3330
Manufacturer grade3330
Material applicationCast Iron
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle5
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
