Sandvik Coromant

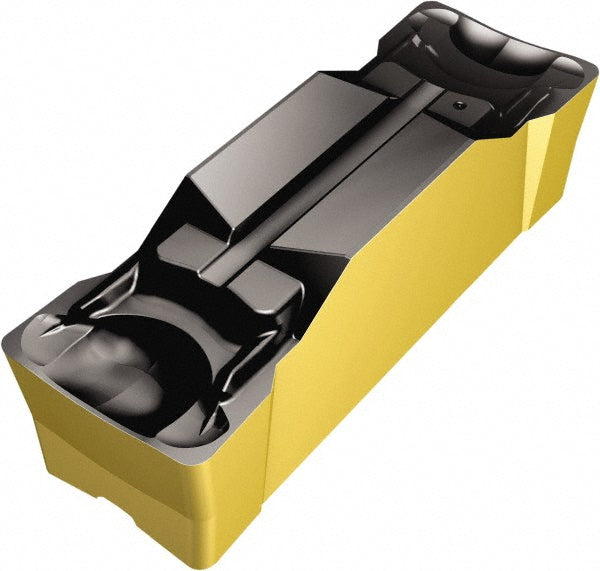

N123G2-0318-0003-GM 4325 Solid Carbide Insert, Grade 4325, TiCN/Al2O3/TiN - Sandvik Coromant 6532091
MFR# 6532091ISO/ANSI# N123G2-0318-0003-GM 4325Cat# N123G2-0318-0003-GM 4325Series CoroCut 1-2
$43.90List $56.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4325
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6532091 is a N123G2-0318-0003-GM 4325 solid carbide indexable insert, grade 4325, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerGM
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0118
Cutting height0.1693
Cutting width in1/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G2-0318-0003-GM 4325
Manufacturers catalog numberN123G2-0318-0003-GM 4325
Manufacturer grade4325
Maximum corner radius0.0157
Maximum depth of cut0.7087
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolYes
Overall length0.7685
Overall width in1/8
RakeNeutral
Rake angle7.00
