Sandvik Coromant
N123G2-0300-0004-TM 4325 Solid Carbide Insert, Grade 4325, TiCN/Al2O3/TiN - Sandvik Coromant 6532128
MFR# 6532128ISO/ANSI# N123G2-0300-0004-TM 4325Cat# N123G2-0300-0004-TM 4325Series CoroCut 1-2
$47.40List $60.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4325
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

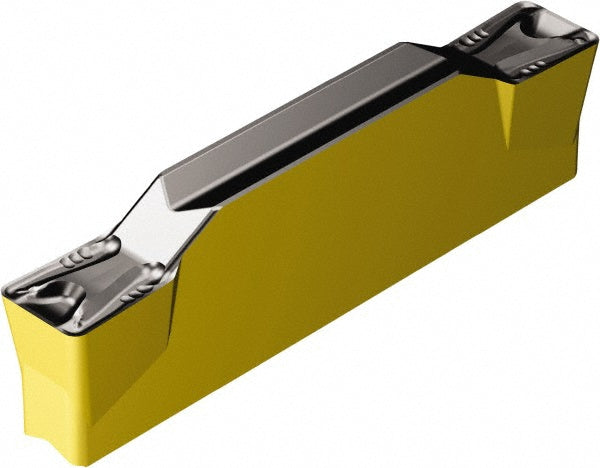

The Sandvik Coromant 6532128 is a N123G2-0300-0004-TM 4325 solid carbide indexable insert, grade 4325, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerTM
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0157
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG2
Insert styleN123x2
Insert thickness0.1693
Iso codeN123G2-0300-0004-TM 4325
Manufacturers catalog numberN123G2-0300-0004-TM 4325
Manufacturer grade4325
Maximum depth of cut0.7240
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall width0.1693
RakePositive
