Sandvik Coromant

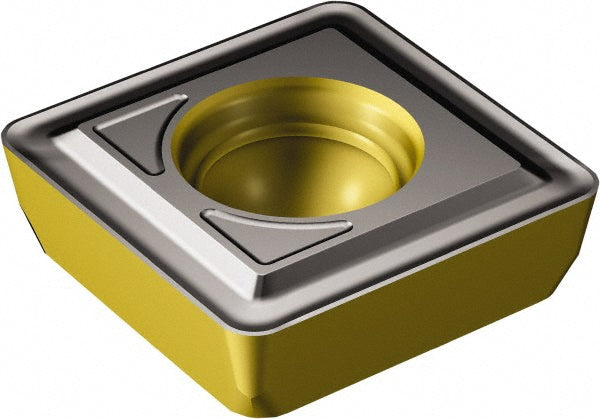

0.2008" IC Solid Carbide Insert, Grade 4334, TiCN/Al2O3/TiN - Sandvik Coromant 6633704
MFR# 6633704
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4334
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6633704 is a solid carbide indexable insert, grade 4334, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerLM
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0197
Cutting directionRight Hand
Hole diameter0.0866
Inscribed circle0.2008
Insert materialSolid Carbide
Insert size020205
Insert style880
Manufacturer grade4334
ShapeSquare
Thickness0.0945
