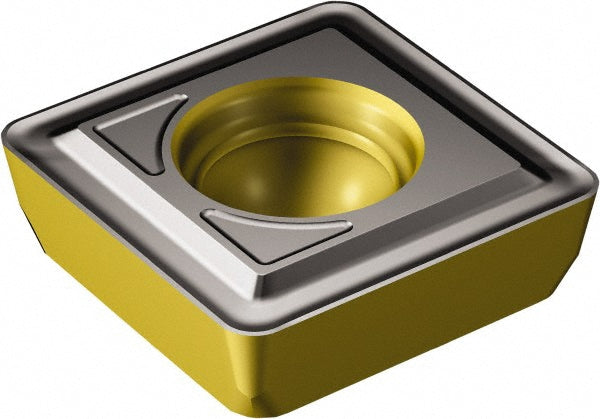

0.2362" IC Solid Carbide Insert, Grade 4334, TiCN/Al2O3/TiN - Sandvik Coromant 6633709
MFR# 6633709
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4334
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6633709 is a solid carbide indexable insert, grade 4334, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerGR
Coating finishTiCN/Al2O3/TiN
Coating processCWD
Corner radius0.0236
Cutting directionRight Hand
Hole diameter0.0984
Inscribed circle0.2362
Insert materialSolid Carbide
Insert size03P
Insert style880
Length0.2362
Manufacturer grade4334
ShapeSquare
Thickness0.1024
Width0.2362
