Sandvik Coromant

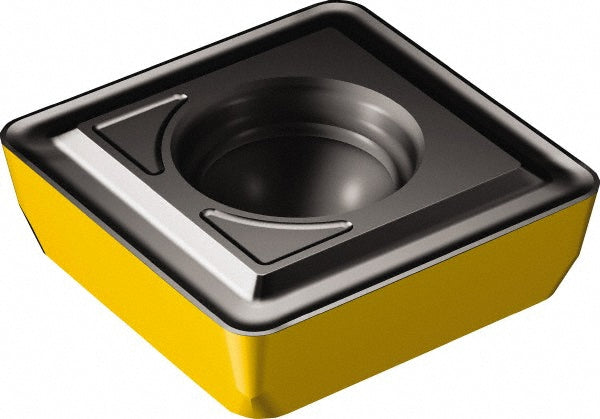

0.3504" IC Solid Carbide Insert, Grade 4334, TiCN/Al2O3/TiN - Sandvik Coromant 6633714
MFR# 6633714
$22.15List $28.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4334
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 6633714 is a solid carbide indexable insert, grade 4334, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerGM
Coating finishTiCN/Al2O3/TiN
Coating processCWD
Corner radius0.0197
Cutting directionRight Hand
Hole diameter0.1260
Inscribed circle0.3504
Insert materialSolid Carbide
Insert size05P
Insert style880
Length0.3504
Manufacturer grade4334
ShapeSquare
Thickness0.1181
Width0.3504
