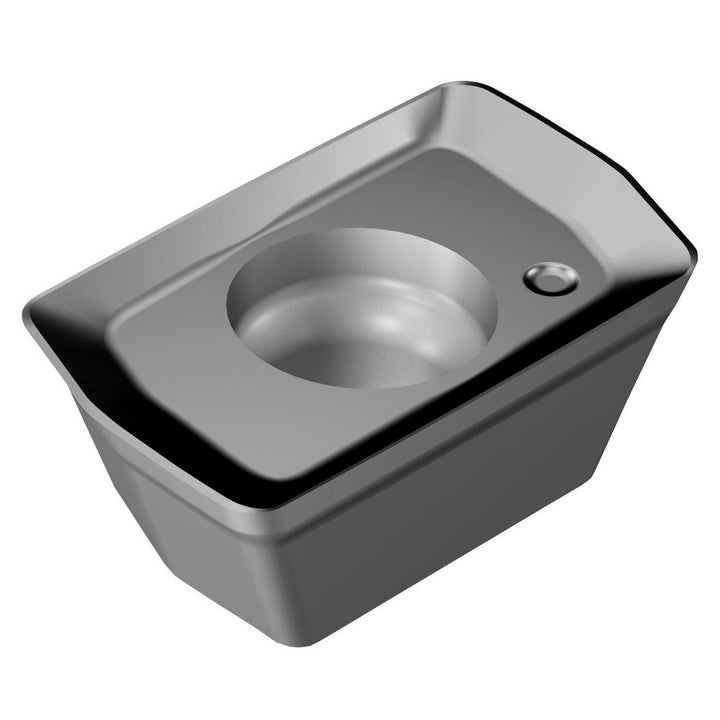

390R-070204E-ML 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 6851161

Sandvik Coromant

390R-070204E-ML 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 6851161

MFR# 6851161ISO/ANSI# 390R-070204E-ML 1040Cat# 390R-070204E-ML 1040Series 390

$23.91List $30.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1040
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 6851161 is a 390R-070204E-ML 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.

Specifications

Ansi code390R-070204E-ML 1040
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.0807
Included angle degree90
Inscribed circle0.1598
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070204
Insert style390
Iso code390R-070204E-ML 1040
Length0.2323
Length range0.0000 to 0.3200
Manufacturers catalog number390R-070204E-ML 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.2283
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle30
Relief angle18.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0945
Thickness range0.0000 to 0.1000
Width0.1598
