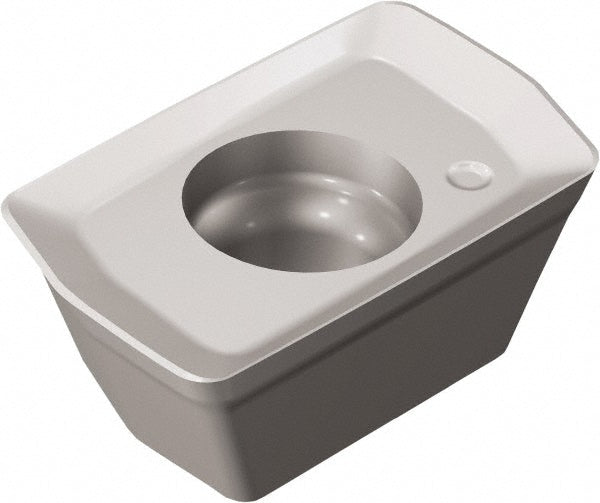

390R-070208E-NL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 6851183

Sandvik Coromant

390R-070208E-NL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 6851183

MFR# 6851183ISO/ANSI# 390R-070208E-NL H13ACat# 390R-070208E-NL H13ASeries 390

$23.24List $29.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 6851183 is a 390R-070208E-NL H13A solid carbide indexable insert, grade H13A. Suited for non-ferrous metal.

Specifications

Ansi code390R-070208E-NL H13A
Chip breakerNL
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.0807
Included angle degree90
Inscribed circle0.1598
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070208
Insert style390
Iso code390R-070208E-NL H13A
Length0.2323
Length range0.0000 to 0.3200
Manufacturers catalog number390R-070208E-NL H13A
Manufacturer gradeH13A
Material applicationNon-Ferrous Metal
Material gradeK20; N15; S20
Maximum depth of cut0.2283
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle30
Relief angle18.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0945
Thickness range0.0000 to 0.1000
Width0.1598
