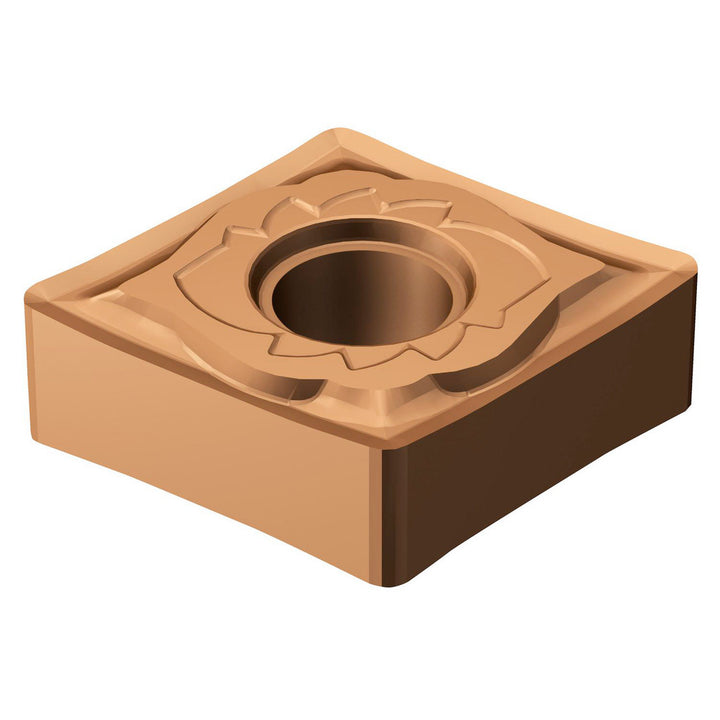

CNGG 12 04 02-SGF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 6851269
MFR# 6851269ISO/ANSI# CNGG 12 04 02-SGF 1115Series T-Max P
$25.92List $33.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6851269 is a CNGG 12 04 02-SGF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Cutting edge styleSharp
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code43.5
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG 12 04 02-SGF 1115
Manufacturer grade1115
Maximum depth of cut (mm)12.65
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
