Sandvik Coromant

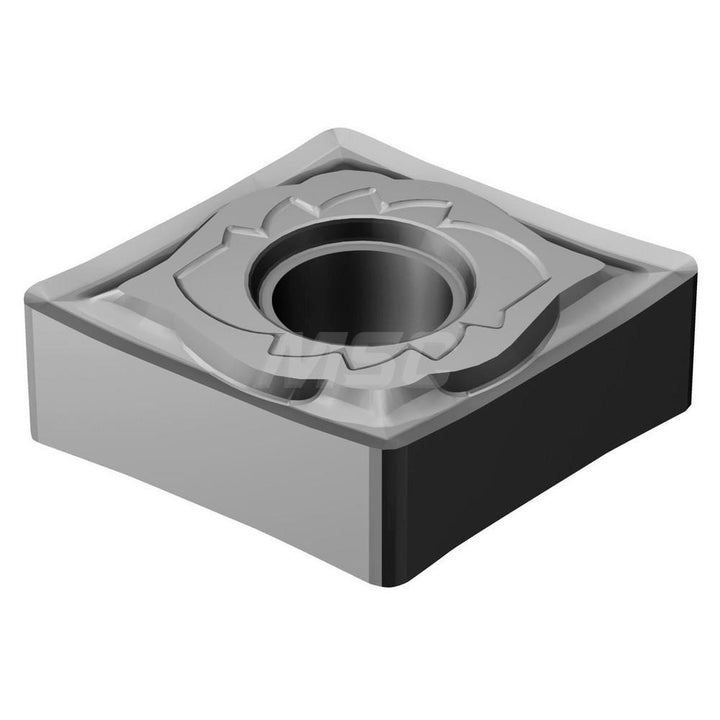

CNGG 12 04 02-SGF H13A Carbide Insert, Grade H13A - Sandvik Coromant 6851271
MFR# 6851271ISO/ANSI# CNGG 12 04 02-SGF H13ASeries T-Max P
$18.87List $24.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 6851271 is a CNGG 12 04 02-SGF H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Corner radius0.0078
Cutting edge styleSharp
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code43.5
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG 12 04 02-SGF H13A
Manufacturer gradeH13A
Maximum depth of cut (mm)12.65
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
